R Series
R500™
What happens when you combine the most desirable features of a lap pool with the best bits of a spa pool, then sprinkle a wealth of functionality on top? You get the R500, the largest member of Endless Pools’ RecSport range. This smart, spacious and surprisingly affordable swim spa represents the future of at-home aquacise - a world where you don’t need endless money and space to enjoy the delights of a backyard swim.
Seating
5 Adults
Dimensions
457 x 226 x 127 cm
Capacity
6,624 litres litres
Make it your own
Cabinet
{{ this.active_cabinet.label }}
{{ cabinet_option.label }}
![]()
Shell
{{ this.active_shell.label }}
{{ shell_option.label }}
![]()
The space to swim in place

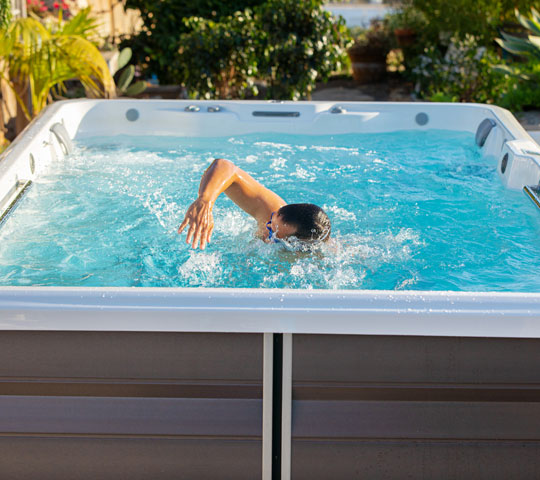

Swim spas work on a simple premise: instead of swimming through the water, why not let the water swim past you? By using three powerful jets to generate a current, combined with a clever design that directs that moving water past the swimmer with minimal turbulence, the R500 creates an organic swimming experience - it almost feels like you’re swimming in open water!
At 457cm x 226cm at the base, the R500 is small enough to fit in almost all backyards, and can even be placed on patios and decks. No more driving to the lake, beach or local pool - you have an endless swim, 100% free of tumble turns, just steps from your own back door.
Jet-fuelled pleasure
The R500 isn’t just a personal trainer - it’s also a massage therapist too. No fewer than five hydromassage seats are dotted around the shell of this swim spa, offering you the opportunity to warm up your muscles before exercise, cool them down afterwards, or rest and relax without working out at all.
The 27 streams produced by the R500 are spread across the impressive back arrays of two indulgent bucket seats (which also feature integrated pillows), the calf and feet jets on twin cool down benches, and the neck-to-feet hydromassage offered by the seat found next to the propulsion system. Come Friday night this swim spa turns into the life of the party!
The high life at a low cost
It might not seem it at first glance, but the RecSport collection, of which the R500 is a member, is actually Endless Pools’ entry-level range. This makes the R500 one of the most affordable swim spas on the market.
But this is a different type of cost-effectiveness - one that still delivers an incredible list of features: energy efficient Tri-Thermic Barrier insulation, backlit waterfall water features, adjustable underwater lighting, the list goes on and on. All in all, the R500 delivers luxury and indulgence in the most budget-friendly way possible.
Type 127cm Swim
Dimensions
457 x 226 x 127 cm
Water Capacity
6,624 litres
Weight
930kg (Dry) / 8,478kg (Filled*)
* Includes water and 10 adults weighing 80 kg each
Shell Colour Options
Alpine White or Ice Grey
Cabinet Colour Options
Dark Mocha or Grey Oak
Swim Technology
3 Swim Jets – Max 806 Litres Per Minute
Hydromassage Seats
3
Hydromassage Jets
27 jets: 1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets
Hydromassage Jet Pump
2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
Control System
LCD Control Panel, 230v/24amp, 50 Hz
Water Feature
1 Illuminated Waterfall
Effective Filtration Area
9 m2
Lighting System
24 Multi-Colour LED Points of Light
Substructure
Wood
Base Pan
Thermoformed ABS Base Pan
Heater
3000w/230V
Energy Efficiency
EPS Foam + Reflective Film; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law.
Stainless Steel Grab Rails
3 Stainless Steel Grab Rails
Music Option
8 Speakers + Subwoofer, Bluetooth®-Enabled
Exercise Equipment Options
Swim Tether, Resistance Bands, Floor Mirror
Vinyl Cover & Lifter Options
Watkins Covers & Lifters (Uprite™/ProLift™ IV) or VacuSeal™ Cover System, CoverCradle™/ProLift™ III
Additional Options
CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, SwimDek® Surface Kits
